Google Cloud (Google Kubernetes Engine)

Pyplan runs on a regional Google Kubernetes Engine cluster with private nodes and GKE Dataplane V2. Users come in through a global external Application Load Balancer created by the GKE Gateway controller, and the secrets reach the cluster from Secret Manager through Workload Identity. The infrastructure is defined with Terraform, and the application is deployed with a Helm chart synchronized by Argo CD.

Reference architecture​

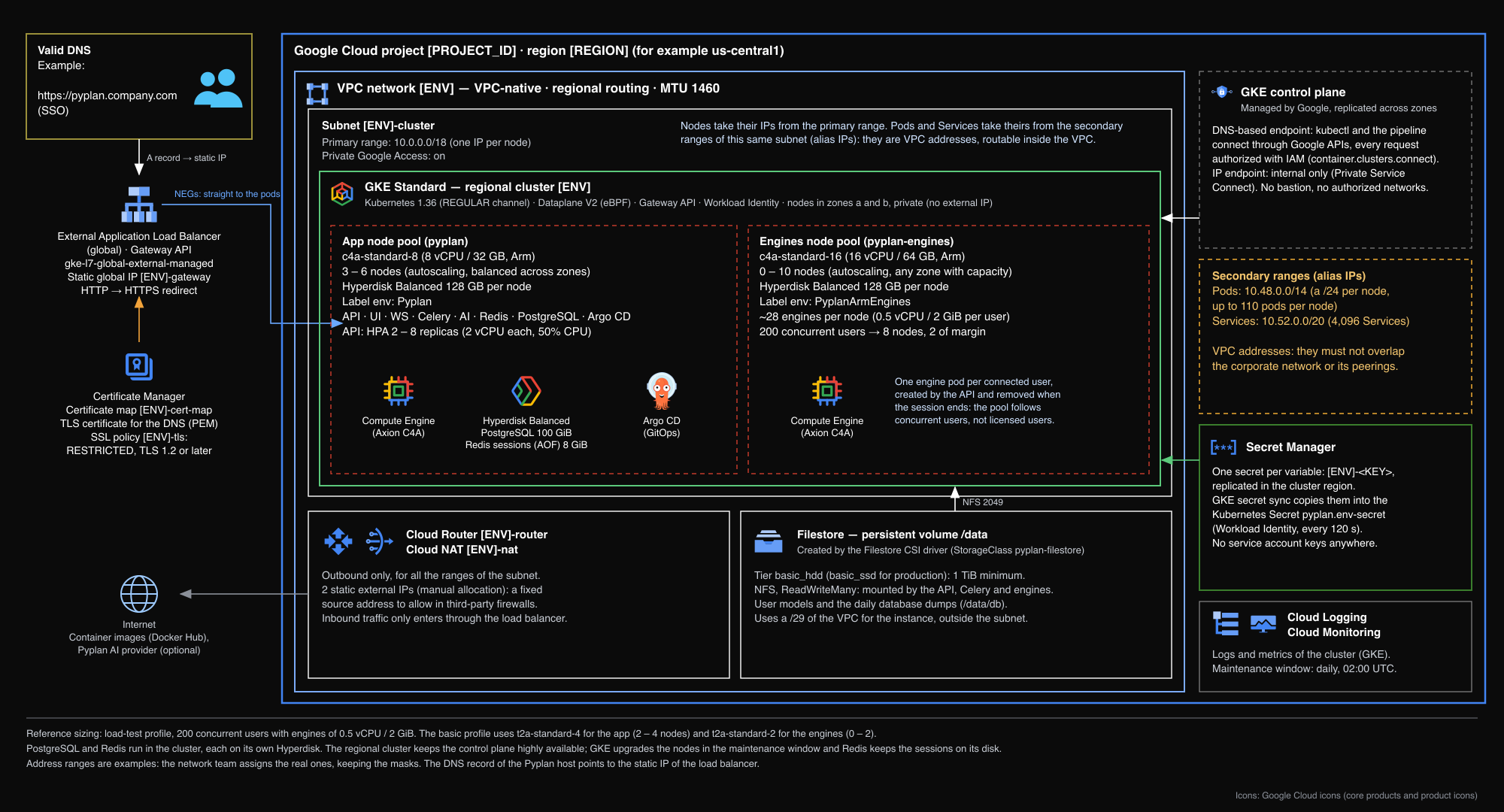

Pyplan architecture on Google Kubernetes Engine

Requirements​

On top of the common requirements:

Network​

VPC-native networking: one subnet for the nodes, with two secondary ranges for the pods and the Services. Pod and Service addresses are VPC addresses, so they must not overlap the corporate network or its peerings.

RangeExample CIDRPurpose
Cluster subnet (primary)10.0.0.0/18One address per node; Private Google Access enabled
Pods (secondary)10.48.0.0/14A /24 per node, up to 110 pods per node
Services (secondary)10.52.0.0/20Kubernetes Service addresses
  • Cloud Router and Cloud NAT for outbound traffic, with static external IPs to allowlist in third-party firewalls.
  • The control plane needs no range of its own: it connects through Private Service Connect.

GKE cluster​

  • GKE Standard, regional cluster, Kubernetes 1.36 on the REGULAR release channel, nodes in two zones.
  • GKE Dataplane V2 (eBPF), which enforces the NetworkPolicies. It can only be selected when the cluster is created.
  • Private nodes (no external IPs). Control plane access through the DNS-based endpoint, authorized with IAM (container.clusters.connect) and recorded in Cloud Audit Logs: no bastion VM and no authorized networks.
  • Add-ons: HTTP Load Balancing, Gateway API (Standard channel), Horizontal Pod Autoscaling, Filestore CSI driver, Workload Identity and Secret Manager secret sync.

Node pools​

Two node pools on Arm (C4A, Google Axion), each with a 128 GB Hyperdisk Balanced boot disk per node (C4A only supports Hyperdisk). Sizing for 200 concurrent users with engines of 0.5 vCPU / 2 GiB:

Node poolMachine typeNodesLabelRuns
pyplanc4a-standard-8 (8 vCPU / 32 GB)3 – 6env: PyplanApplication pods, Redis, PostgreSQL, Argo CD
pyplan-enginesc4a-standard-16 (16 vCPU / 64 GB)0 – 10env: PyplanArmEnginesCalculation engines (about 28 per node)

Regional quota for this sizing: about 232 C4A vCPUs and 2.4 TB of Hyperdisk Balanced, counting one upgrade node per pool.

Database: PostgreSQL​

  • By default PostgreSQL 16 runs in the cluster, with reserved resources (4 vCPU / 16 GiB) and its own 100 GiB Hyperdisk.
  • Cloud SQL for PostgreSQL is also supported: 4 vCPUs / 15 GB recommended, SSD storage, high availability and point-in-time recovery for production, private IP only.

Storage: Filestore​

  • Created dynamically by the Filestore CSI driver (StorageClass pyplan-filestore) in the cluster's VPC.
  • Tier basic_hdd (basic_ssd for production), 1 TB minimum, ReadWriteMany.
  • NFS (port 2049) allowed from the GKE nodes. Daily backup of the instance.

Ingress, TLS and secrets​

  • GKE Gateway controller (gke-l7-global-external-managed): a global external Application Load Balancer with container-native load balancing to the pods, on a reserved static IP address.
  • The TLS certificate in Certificate Manager, and an SSL policy with the RESTRICTED profile and TLS 1.2 as the minimum version.
  • Application secrets in Secret Manager, copied into the cluster by GKE secret sync with Workload Identity.

Administrative access​

  • CI/CD pipeline authenticated with Workload Identity Federation (no service account keys), impersonating a service account with only the GKE, network, Certificate Manager and Secret Manager roles it needs.
