Single Sign-On (SSO)

Protocol Used​

SAML 2.0 is the protocol chosen by Pyplan for SSO integrations.

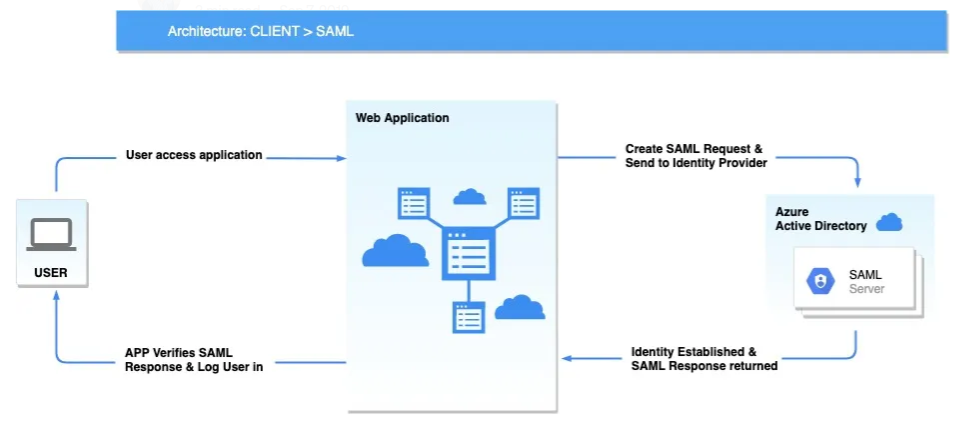

SAML 2.0 Flow

Requirements​

The Identity Provider (IDP) must have the ability to edit attributes and make the following parameters available. The following values are simply examples:

  • STS URL

    https://sts.windows.net/b1fa7456-6j32-43d6-8134-d124b17c5515/

  • SSO config

    Key   -> "urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect"
    Value -> "https://login.microsoftonline.com/b1fa7456-6j32-43d6-8134-d124b17c5515/saml2"

  • SLO config

    Key   -> "urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
    Value -> "https://login.microsoftonline.com/common/wsfederation?wa=wsignout1.0"

  • Metadata URL

    https://login.microsoftonline.com/b1fa7456-6j32-43d6-8134-d124b17c5515/federationmetadata/2007-06/federationmetadata.xml?appid=367ej8g3-fe39-4e7b-6d05-f99910433d66

IDP Configuration​

Select the most suitable integration for your environment:
